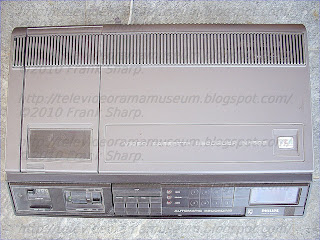

PHILIPS VIDEO CASSETTE RECORDER VCR N1502 YEAR 1976.

Video Cassette Recording (VCR) was an early domestic analog recording format designed by Philips. It was the first successful consumer-level home videocassette recorder (VCR) system. Later variants included the VCR-LP and Super Video (SVR) formats.
The VCR format was introduced in 1972, just after the Sony U-matic format in 1971. Although at first glance the two might appear to have been competing formats, they were aimed at very different markets. U-matic was introduced as a professional television production format, whilst VCR was targeted particularly at educational but also domestic users. Unlike some other early formats such as Cartrivision, the VCR format does record a high-quality video signal without resorting to Skip field.
Home video systems had previously been available, but they were open-reel systems (most notably made by Sony) and were expensive to both buy and operate. They were also unreliable and often only recorded in black and white such as the EIAJ-1. The VCR system was easy to use and recorded in colour but was still expensive: the N1500 recorder cost nearly £600 in the United Kingdom when it was introduced in 1972, the equivalent of just over £6000 in 2009.
By comparison a small car (the Morris Mini) could be purchased for just over £600.

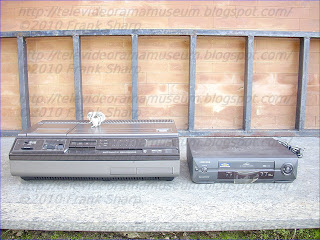

VCR-format video cassettes, with Samsung VHS Model shown for scale.

The VCR format used large square cassettes with 2 co-axial reels, one on top of the other, containing half inch (12.7 mm) wide chrome dioxide magnetic tape. Three playing times were available: 30, 45 and 60 minutes. The 60-minute videocassettes proved very unreliable, suffering numerous snags and breakages due to the very thin video tape. The mechanically complicated recorders themselves also proved somewhat unreliable. One particularly common failing occurred should tape slack develop within the cassette; the tape from the top (takeup) spool may droop into the path of the bottom (supply) spool and become entangled in it if rewind was selected. The cassette would then completely jam and require dismantling to clear the problem, and the tape would then be creased and damaged.
The system predated the development of the slant azimuth technique to prevent crosstalk between adjacent video tracks, so it had to use an unrecorded guard band between tracks. This required the system to run at a high tape speed of 11.26^[2] inches per second.
Despite its limitations, the Philips VCR system was groundbreaking and brought together many advances in video recording technology to produce the first truly practical home video cassette system. The very first Philips N1500 model included all the essential elements of a domestic video cassette recorder:

• Simple loading of cassette and simple operation by "Piano Key" controls, with full auto-stop at tape ends.
• A tuner for recording off-air television programmes.
• A clock with timer for unattended recordings.
• A modulator to allow connection to a normal (for the time) television receiver without audio and video input connectors.

The Philips VCR system was only marketed in the U.K. and Europe. In mid-1977, Philips announced they were considering distribution of the format in North America, and it was test marketed for several months. Because the format was initially designed only for use with the 625-line 50 Hz PAL system, VCR units had to be modified in order to work with the 60 Hz NTSC system. Unfortunately, for mechanical and electronic reasons, the tape speed had to be increased by 20%, which resulted in a 60-minute PAL tape running for 50 minutes in a NTSC machine. DuPont announced a thinner videotape formulation that would allow a 60-minute NTSC VCR tape (and roughly 70 minutes in PAL), but the tape was even less reliable than previous formulations. Ultimately, Philips abandoned any hope of trying to sell their VCR format in North America, partly because of the reliability issues, and partly because of the introduction of VHS that same year.

Philips N1500 (VCR Format) was the first commercially available home video cassette recorder in the UK. Schools and colleges could buy them in 1972 although the general public had to wait a little while longer before they could get their hands on them.

The limited recording and playback time of 70 minutes, and the fact that two or even three tapes were needed to record a feature film (not to mention the VCR's enormous price tag) probably didn't do anything to increase it's popularity in the home.

The machines themselves were entirely mechanically controlled, with big square keys and mechanical interlocks. The head drum, capstan and reel drives were driven by two noisy synchronous mains motors with eddy current braking, whilst the lacing mechanism was driven by a small DC motor driving a nylon cord. The 24 hour 1 event timer was controlled by a mechanical clock which resembled many kitchen cooker clocks. The electronics inside were entirely discreet and were very awkward to repair, but luckily they didn't go wrong all that often (although mechanical faults were another story).

After various incarnations of the N1500, including a semi-professional stereo machine - the N1520, came a long playing version, the Philips N1700 (VCR-LP Format). This was a much friendlier looking machine which used DC motors and was far more modularized. It was also made out of plastic, rather than fablon or veneer covered chipboard and metal as with the N1500. It used the same tapes as the N1500, but effectively doubled the record and playback time. It did this by halving the tape speed and using a clever trick with the video heads (It was a clever trick for a domestic machine then, but now it is entirely standard). Recordings made on the N1700 were not interchangeable with the N1500. Initially the recordings were limited to just over two hours, but after a while, two and a half hour (LVC150) and eventually three hour tapes (LVC180) were developed. These three hour tapes used a very thin base, and could only be used in the N1700, as the high tape speed and other factors in the N1500 caused the thin tapes to stretch and snap very easily.

There was a final incarnation of this tape-format, which was the Grundig SVR system. Once again, the tape speed was reduced, and consequently the maximum recording time was increased to just over four hours. Philips never adopted this format, and it was only Grundig that ever made SVR machines.

Recorders that conformed to the VCR and VCR-LP standards were manufactured or re-badged by several European companies other than Philips. These included: Dynatron, ITT, Grundig, Loewe, Pye and Skantic. Watch out for a comprehensive list of Philips and Non-Philips model numbers and specifications coming soon(ish).

PHILIPS VCR Model Numbering:

The First Philips machine was model number N1500, after which the format is also known. This had "first generation" mechanics including magnetic braking servo systems applied to relatively large mains voltage induction motors. The later model N1502 had a totally different mechanism using DC motors and more advanced electronics, and was somewhat more reliable. A later version again was still called N1502 but had further significant mechanical and electronic advances, and in particular had a worm drive for operation of the loading mechanism rather than a fragile plastic gearbox assembly. The N1512 model offered composite video input and output connectors, but was otherwise the same as the N1502. The VCR-LP model N1700 was closely related to the later N1502 variant. Other, rarer Philips models included stereo sound and editing capabilities.
Grundig built a VCR4000 VCR-LP model which had microprocessor control and so treated the tapes more gently than the purely mechanical decks, and the SVR4004 (SVR format) model was very similar. Other Grundig models included the VCR3000 (believed to be VCR format) and VCR5000AV (believed to be dual format VCR and VCR-LP).


Although only a few years after the original N1500, and the same format, the 1502 could hardly look more different. Gone is the wood and aluminium styling, replaced by a battleship grey plastic case, and the analogue clock has been upgraded to a digital timer.

In fact all the controls - now all on the sloping fascia - have been re-worked, with the single exception of the rotary tracking knob on the left. The colour-killer, audio meter and audio level control have disappeared, the machine being entirely automatic, and the operating keys are now set flush with the fascia.

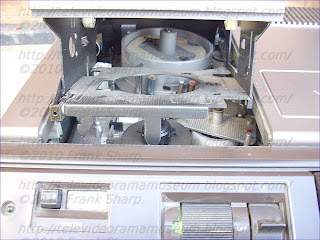

The carriage is an unusual tilting affair, released by a lever which also controls the power to the machine. This means that you can't eject without switching the machine off; however, this is more logical than it sounds as VCR format machines keep the tape laced as long as the power is on.

The 1502 added a still-frame button; when this was in the 'on' position, the picture being scanned by the heads was sent to the TV even when the tape was stopped. The still picture produced is surprisingly good, with no noise bars or other disruption.


The timer allowed a recording to be programmed several days in advance, though only one recording could be set up, and the clock is backed-up by a battery so that power-cuts will not cause the machine to lose the time - or more seriously, the programmed recording.
Internally, the layout is pretty much the same as the 1500, though more electronic circuits are crammed in. A few chips are now used, though most of the electronics is still discrete, with aluminium cans shielding each circuit from interference from those around it.

The picture sharpener circuit, optional on the 1500, is now built in.

Model:	N1502.
Description:	Second generation VCR format video.
Year:	1976.
Original cost:	-
Features:	Basic record and playback, 1 event 3 day timer on electronic clock, Automatic audio record level only, Stop motion button, Hydraulic eject (Sort of), Picture crispener.
Format:	VCR (Video Cassette Recording).
Tape Width:	0.5 inch.
Tape Speed:	14.29 cm / sec.
Record / Playback method:	Helical scan with guard bands.
Video Track Width:	130μM (Plus 57μM guard-bands between tracks).
Theoretical Resolution:	3MHz < 12dB
Audio record format:	2 linear channels on VCR standard, only one channel used on this model.
Max Record / Playback Time:	1 hour with VC60 cassette or 1 hour and 10 minutes with LVC150 cassette.
Misc:	Circuitry and internal layout was much more modular than the first generation Philips VCRs. Used quiet DC motors (First generation VCR's used hefty synchronous AC mains motors).

The invention relates to an apparatus for recording and reproducing signals, particularly video signals, on a magnetic tape which is disposed in spools lying one above the other concentrically in a cassette and is adapted to be laid by a tape extracting device with a pair of grippers engaging behind the magnetic tape, in two tape loops running towards one another in opposite directions, against the periphery of a slit head drum in which at least one magnetic head rotates.

For the recording of picture signals and their reproduction on a magnetic tape, many diverse methods and apparatuses are known. The methods can be divided into longitudinal, transverse, and inclined trace recording. In longitudinal trace recording, the tape feed or speed is equal to the scanning speed. In order to achieve adequate playblack times for a predetermined length of magnetic tape the scanning speed must be kept low. However, the attainable upper frequency limit and consequently the quality of the television picture are thereby impaired. The process is therefore not suitable for small, inexpensive video recorders. In the transverse trace method the video signal is recorded in transverse tracks lying side by side. Although the tape speed is reduced in this process, nevertheless it is not possible to accommodate a television frame on a transverse track. The transverse trace method can therefore be put into practice technically only at great expense and is consequently also out of the question for inexpensive video recorders. Thus only the inclined trace method remains for such recorders.

The inclined trace or helical scan method has a number of advantages, which particularly affect the construction of inexpensive video recorders. These advantages include the low tape speed, which is between 4.75 and 19.05 centimeters per second, the good utilisation of the tape by means of inclined tracks, since an inclined track can accommodate an entire television frame, and also the relatively low electronic expense for the magnetic head and magnetic tape servo control. Finally, the good picture quality which can be achieved is also not to be ignored.

In order to achieve the necessary high relative speed between the magnetic head and the magnetic tape, the video heads rotate on a head disc inside a slit head drum around which the magnetic tape is slung helically. The video heads extend about 50 microns over the periphery of the head drum. The tape traction ensures good contact between the magnetic tape and the magnetic heads.

The speed of rotation of the head disc depends on the number of magnetic heads. In two-head systems, the head disc must rotate at 25 revolutions per second, and in single-head systems at 50 revolutions per second (in the NTSC system 30 and 60 revolutions per second respectively).

In addition to the number of video heads and the width of the magnetic tape, the angle of contact of the magnetic tape around the head drum is also of decisive importance for the functioning of the apparatus. In this respect a distinction is made between alpha-wrap covering 360° and omega-wrap covering slightly more than 180°. In the case of 360° wrap of the head drum only one rotating magnetic head is required. The track recorded by it contains a complete television picture, so that a stationary picture can also be scanned with good picture quality. It is however extremely difficult to achieve 360° wrap of the magnetic tape around the head drum. This difficulty is even greater when a video recorder has to work with cassettes. It is true that numerous tape extraction devices for cassette video recorders are already known. None of these however is able to lay the magnetic tape around the periphery of the head drum over an angle of 360° or more. Techniques known from spool apparatus cannot be applied to cassette apparatus. In addition, they are usually expensive.

The invention relates to a tape recording and/or play-back apparatus. It is intended for use with signals having a wide frequency spectrum. In such a device a record carrier is accommodated in a cassette and can be brought out from the cassette and wound along a helical path around part of the cylindrical outer surface of a drum by means of a displaceable tape diverting device having at least one tapeguide stud. When the cassette is placed on the apparatus the tape guide stud projects into an opening in the cassette and engages a portion of the tape which extends in the region of the cassette opening. In such apparatus it has already been proposed to provide a tape diverting device with two tapeguide studs which are adapted to be displaced in a direction at right angles to the path of the tape in the cassette and which, with the tape wound about the drum, are located diametrically opposite one another laterally of the drum.

According to the invention, in an apparatus of the aforementioned kind, the tape diverting device is arranged so as to be pivotable along an arc of a circle away from the cassette, when the latter has been placed on the apparatus, about part of the drum, whilst during the pivoting movement of the tape diverting device the tape is engaged by the tape guide and is wound around the cylindrical outer surface of the drum. The steps according to the invention ensure a particularly simple and reliable construction which permits a satisfactory control of the tolerances in respect of the relative positions of the tape diverting device and the drum which have to satisfy stringent requirements.

The pivotal movement of the tape diverting device can be effected in a variety of manners. Advantageously the tape diverting device includes a support carrying the tape guide stud, which support is pivotable about an axis arranged at right angles to the principal plane of the cassette. It has been found to be particularly advantageous for the tape diverting device to be provided with a support which carries the tape guide stud and is pivotable about an axis extending in the same direction as the drum axis. In this case a particularly accurate construction is obtainable by designing the support and the drum as an integral unit adapted to pivot about the axis of the support. An arrangement which is particularly advantageous is obtained if, with the tape wound around the drum, the drum axis is closer to the cassette than is the pivoting axis of the tape diverting device.

Obviously, there are several manners in which the tape diverting device can be pivoted. For example, it may be effected by means of a separate control member which actuates the tape diverting device through a toothed gearing. It has proved advantageous to use a servo motor for pivoting the tape diverting device. A simple construction which is highly effective for operating the apparatus is obtained when the tape diverting device is pivoted by means of a handle having a part which extends above the drum and preferably acts as a cover for the drum.

An advantageous starting position for winding the tape around the drum and a particularly accurate winding operation is obtained if a tape guide arrangement is provided on the drum and is caused to bear the tape on the tape guide when the cassette is placed in the operative position.

Further, it has proved highly advantageous for the tape diverting device to have two tape guide studs which when the cassette is placed on the apparatus engage the tape. One of these studs, with the tape wound on the drum, guides the tape with respect to the drum, whilst the other stud holds the part of the tape travelling between the said one stud and the cassette spaced away from the drum and may, if required, divert the tape.

To obtain a high degree of reliability, the following features have been found to be of advantage. The first feature is that the on/off switch of the apparatus can be operated when the tape diverting device is pivoted. Further, the tape diverting device may operate a locking device which, with the tape wound around the drum, locks the cassette in its position on the apparatus. In this case the locking device preferably also acts to prevent cassettes from being placed on the apparatus when the tape guide stud has been pivoted towards the drum. Also, it has proved of advantage that when the tape diverting device is being pivoted, preferably at the beginning of its movement, any mode of operation of the apparatus can be stopped, for example by actuation of an automatic stop or by returning the mode switch to its inoperative position.
